Description
Size

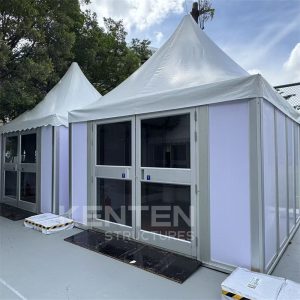

| PAGODA TENT | |||
| Width | Eave Height | Ridge Height | Main Profile |
| 3m | 2.5m | 4.3m | 62*46*2mm |
| 4m | 2.5m | 4.8m | 62*46*2mm |
| 5m | 2.5m | 5.43m | 85*48*3mm |
| 6m | 2.5m | 5.92m | 85*48*3mm |
| 8m | 2.6m | 5.36m | 100*48*3mm |
| 10m | 2.6m | 6.38m | 100*48*3mm |
| Pagoda tent can be used as a single unit or combined by a rain gutter to make a larger space or a special structure style. Customized size or shape is available. | |||
| Main Profile | Material: Hard pressed extruded aluminium 6082-T6, 6061/T6 Features: Stainless | |||
| Cover Material | Material: Double PVC-coated polyester textile, 750g- 900g/m² Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant | |||
| Eave Connection | Hot-dip Galvanized steel insert | |||
| Wind Loading | 80km/hour | |||
