Description
1. Structural Specifications

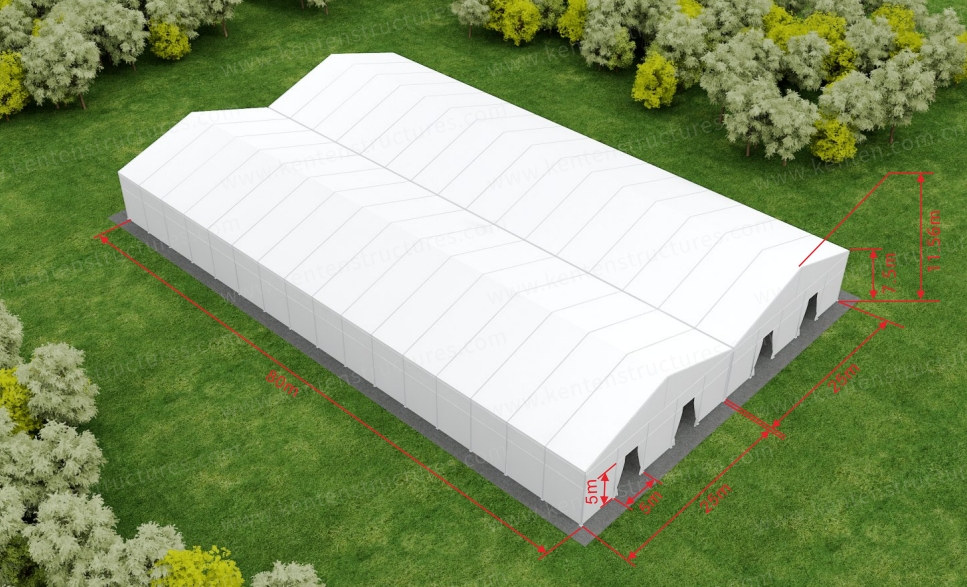

– Dimensions:
– Span Width: 25m (optimized for wide storage layouts)
– Length: 80m (extendable via modular design)
– Eave Height: Customized 7.5m (vs. standard 4–6m range; supports high stacking of goods)
Higher eave heights available upon request per KENTEN’s customization policy.
– Coverage Area: 2,000m² (25m × 80m) for high-volume storage.
2. Framework & Engineering
– Material: F27 aluminum alloy (6061/T6), providing 250MPa+ hardness with anti-corrosion treatment [5].
– Modular System: 5m bay spacing for rapid assembly/disassembly and length flexibility [4][5][6].
– Roof Design: 18° pitch for optimal rain/snow runoff.
Key Industrial Applications
① Logistics Warehousing: Replaces brick-and-mortar facilities in land-constrained areas.
② Manufacturing Support: Serves as temporary workshops or raw material storage.
> Compatible Accessories:
> – HVAC systems, ventilation units
> – Timber/PVC flooring for moisture protection
> – Lighting kits, security systems
> – Advanced anchoring solutions for soft ground
